RobotPictureBrowser

Copy

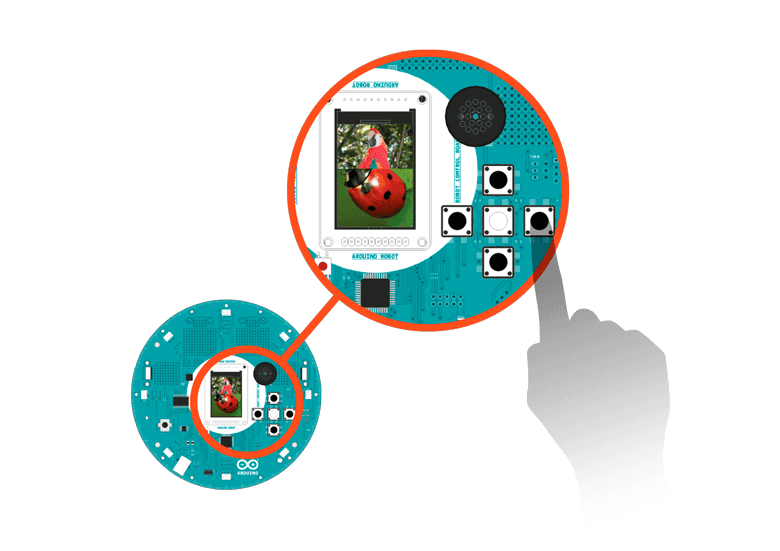

1/* Picture Browser
2
3 You can make your own gallery/picture show with the
4
5 Robot. Put some pictures on the SD card, start the
6
7 sketch, they will display on the screen.
8
9 Use the left/right buttons to navigate through the
10
11 previous and next images.
12
13 Press up or down to enter a mode where you change
14
15 the pictures by rotating the robot.
16
17 You can add your own pictures onto the SD card, and
18
19 view them in the Robot's gallery!
20
21 Pictures must be uncompressed BMP, 24-bit color depth,
22
23 160 pixels wide, and 128 pixels tall.
24
25 They should be named as "picN.bmp". Replace 'N' with a
26
27 number between 0 and 9.
28
29 The current code only supports 10 pictures. How would you
30
31 improve it to handle more?
32
33 Circuit:
34
35 * Arduino Robot
36
37 created 1 May 2013
38
39 by X. Yang
40
41 modified 12 May 2013
42
43 by D. Cuartielles
44
45 This example is in the public domain
46
47 */
48
49#include <ArduinoRobot.h> // include the robot library
50#include <Wire.h>
51
52const int NUM_PICS = 4;  //Total number of pictures in Gallery
53
54// name the modes
55
56const int CONTROL_MODE_KEY = 0;
57
58const int CONTROL_MODE_COMPASS = 1;
59
60char buffer[] = "pic1.bmp";  // current file name
61int i = 1;  // Current gallery sequence counter
62int mode = 0;  // Current mode
63
64// text to display on screen
65char modeNames[][9] = { "keyboard", "tilt    " };
66
67void setup() {
68
69  // initialize the Robot, SD card, display, and speaker
70
71  Robot.beginSD();
72
73  Robot.beginTFT();
74
75  Robot.begin();
76
77  // draw "lg0.bmp" and "lg1.bmp" on the screen
78
79  Robot.displayLogos();
80
81  // draw init3.bmp from the SD card on the screen
82
83  Robot.drawBMP("init3.bmp", 0, 0);
84
85  // display instructions
86
87  Robot.stroke(0, 0, 0);
88
89  Robot.text("The gallery\n\n has 2 modes, in\n keyboard mode, L/R\n key for switching\n pictures, U/D key\n for changing modes", 5, 5);
90
91  delay(6000);
92
93  Robot.clearScreen();
94
95  Robot.drawBMP("pb.bmp", 0, 0);
96
97  Robot.text("In tilt mode,\n quickly tilt the\n robot to switch\n pictures", 5, 5);
98
99  delay(4000);
100}
101
102void loop() {
103
104  buffer[3] = '0' + i; // change filename of the img to be displayed
105
106  Robot.drawBMP(buffer, 0, 0); // draw the file on the screen
107
108  // change control modes
109
110  switch (mode) {
111
112    case CONTROL_MODE_COMPASS:
113
114      compassControl(3);
115
116      break;
117
118    case CONTROL_MODE_KEY:
119
120      keyboardControl();
121
122      break;
123
124  }
125
126  delay(200);
127}
128
129void keyboardControl() {
130
131  //Use buttons to control the gallery
132
133  while (true) {
134
135    int keyPressed = Robot.keyboardRead(); // read the button values
136
137    switch (keyPressed) {
138
139      case BUTTON_LEFT:  // display previous picture
140
141        if (--i < 1) {
142
143          i = NUM_PICS;
144
145        }
146
147        return;
148
149      case BUTTON_MIDDLE:  // do nothing
150
151      case BUTTON_RIGHT:  // display next picture
152
153        if (++i > NUM_PICS) {
154
155          i = 1;
156
157        }
158
159        return;
160
161      case BUTTON_UP:  // change mode
162
163        changeMode(-1);
164
165        return;
166
167      case BUTTON_DOWN:  // change mode
168
169        changeMode(1);
170
171        return;
172
173    }
174
175  }
176}
177
178// if controlling by the compass
179void compassControl(int change) {
180
181  // Rotate the robot to change the pictures
182
183  while (true) {
184
185    // read the value of the compass
186
187    int oldV = Robot.compassRead();
188
189    //get the change of angle
190
191    int diff = Robot.compassRead() - oldV;
192
193    if (diff > 180) {
194
195      diff -= 360;
196
197    } else if (diff < -180) {
198
199      diff += 360;
200
201    }
202
203    if (abs(diff) > change) {
204
205      if (++i > NUM_PICS) {
206
207        i = 1;
208
209      }
210
211      return;
212
213    }
214
215    // change modes, if buttons are pressed
216
217    int keyPressed = Robot.keyboardRead();
218
219    switch (keyPressed) {
220
221      case BUTTON_UP:
222
223        changeMode(-1);
224
225        return;
226
227      case BUTTON_DOWN:
228
229        changeMode(1);
230
231        return;
232
233    }
234
235    delay(10);
236
237  }
238}
239
240// Change the control mode and display it on the LCD
241void changeMode(int changeDir) {
242
243  // alternate modes
244
245  mode += changeDir;
246
247  if (mode < 0) {
248
249    mode = 1;
250
251  } else if (mode > 1) {
252
253    mode = 0;
254
255  }
256
257  // display  the mode on screen
258
259  Robot.fill(255, 255, 255);
260
261  Robot.stroke(255, 255, 255);
262
263  Robot.rect(0, 0, 128, 12);
264
265  Robot.stroke(0, 0, 0);
266
267  Robot.text("Control:", 2, 2);
268
269  Robot.text(modeNames[mode], 52, 2);
270
271  delay(1000);
272}
