RobotInputs

Copy
1/* Robot Inputs
2

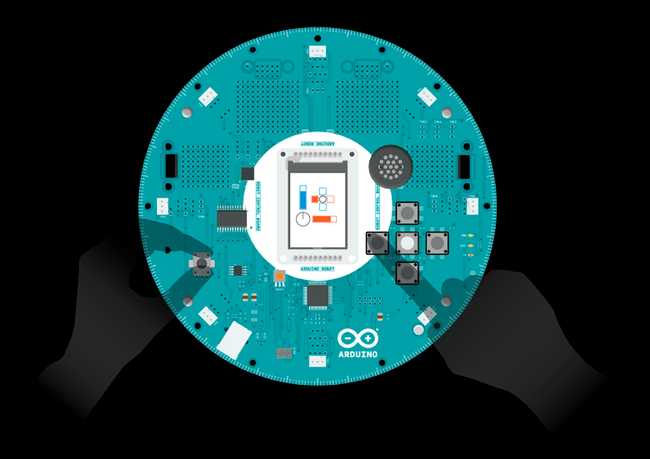

3 This sketch shows you how to use the on-board
4
5 potentiometer and buttons as inputs.
6
7 Turning the potentiometer draws a clock-shaped
8
9 circle. The up and down buttons change the pitch,
10
11 while the left and right buttons change the tempo.
12
13 The middle button resets tempo and pitch.
14
15 Circuit:
16
17 * Arduino Robot
18
19 created 1 May 2013
20
21 by X. Yang
22
23 modified 12 May 2013
24
25 by D. Cuartielles
26
27 This example is in the public domain
28
29 */
30
31#include <ArduinoRobot.h>
32#include <Wire.h>
33
34// default tempo and pitch of the music
35int tempo = 60;
36int pitch = 1000;
37
38void setup() {
39
40  // initialize the Robot, SD card, speaker, and display
41
42  Robot.begin();
43
44  Robot.beginTFT();
45
46  Robot.beginSpeaker();
47
48  Robot.beginSD();
49
50  // draw "lg0.bmp" and "lg1.bmp" on the screen
51
52  Robot.displayLogos();
53
54  // play a sound file
55
56  Robot.playFile("Melody.sqm");
57}
58
59void loop() {
60
61  // check the value of the buttons
62
63  keyDown(Robot.keyboardRead());
64
65  // check the value of the pot
66
67  drawKnob(Robot.knobRead());
68}
69
70// Draw the basic interface
71void renderUI() {
72
73  //fill the buttons blank
74
75  Robot.fill(255, 255, 255);
76
77  Robot.rect(53, 58, 13, 13); // left
78
79  Robot.rect(93, 58, 13, 13); // right
80
81  Robot.rect(73, 38, 13, 13); // up
82
83  Robot.circle(79, 64, 6); // middle
84
85  Robot.rect(73, 78, 13, 13); // down
86
87  //draw the knob
88
89  Robot.noFill();
90
91  Robot.circle(26, 116, 17); // knob
92
93  //draw the vertical bargraph
94
95  int fullPart = map(pitch, 200, 2000, 0, 58); //length of filled bargraph
96
97  Robot.fill(255, 255, 255);
98
99  Robot.rect(21, 30, 13, 58 - fullPart);
100
101  Robot.fill(0, 0, 255);
102
103  Robot.rect(21, 88 - fullPart, 13, fullPart); //58-fullPart+30
104
105  //draw the horizontal bargraph
106
107  fullPart = map(tempo, 20, 100, 0, 58);  // length of filled bargraph
108
109  Robot.fill(255, 190, 0);
110
111  Robot.rect(53, 110, fullPart, 13);
112
113  Robot.fill(255, 255, 255);
114
115  Robot.rect(53 + fullPart, 110, 58 - fullPart, 13);
116}
117
118void keyDown(int keyCode) {
119
120  // use a static int so it is persistent over time
121
122  static int oldKey;
123
124  switch (keyCode) {
125
126    case BUTTON_LEFT:
127
128      //left button pressed, reduces tempo
129
130      tempo -= 5;
131
132      if (tempo < 20) {
133
134        tempo = 20;  //lowest tempo 20
135
136      }
137
138      Robot.fill(255, 190, 0);
139
140      Robot.rect(53, 58, 13, 13);
141
142      break;
143
144    case BUTTON_RIGHT:
145
146      //right button pressed, increases tempo
147
148      tempo += 5;
149
150      if (tempo > 100) {
151
152        tempo = 100;  //highest tempo 100
153
154      }
155
156      Robot.fill(255, 190, 0);
157
158      Robot.rect(93, 58, 13, 13);
159
160      break;
161
162    case BUTTON_UP:
163
164      //up button pressed, increases pitch
165
166      pitch += 120;
167
168      if (pitch > 2000) {
169
170        pitch = 2000;
171
172      }
173
174      Robot.fill(0, 0, 255);
175
176      Robot.rect(73, 38, 13, 13);
177
178      break;
179
180    case BUTTON_DOWN:
181
182      //down button pressed, reduces pitch
183
184      pitch -= 120;
185
186      if (pitch < 200) {
187
188        pitch = 200;
189
190      }
191
192      Robot.fill(0, 0, 255);
193
194      Robot.rect(73, 78, 13, 13);
195
196      break;
197
198    case BUTTON_MIDDLE:
199
200      //middle button pressed, resets tempo and pitch
201
202      tempo = 60;
203
204      pitch = 1000;
205
206      Robot.fill(160, 160, 160);
207
208      Robot.circle(79, 64, 6);
209
210      break;
211
212    case BUTTON_NONE:
213
214      //Only when the keys are released(thus BUTTON_NONE is
215
216      //encountered the first time), the interface will be
217
218      //re-drawn.
219
220      if (oldKey != BUTTON_NONE) {
221
222        renderUI();
223
224      }
225
226      break;
227
228  }
229
230  if (oldKey != keyCode) {
231
232    // change the song's tempo
233
234    Robot.tempoWrite(tempo);
235
236    // change the song's pitch
237
238    Robot.tuneWrite(float(pitch / 1000.0));
239
240  }
241
242  oldKey = keyCode;
243}
244
245//Draw a circle according to value
246//of the knob.
247void drawKnob(int val) {
248
249  static int val_old;
250
251  int r = map(val, 0, 1023, 1, 15);
252
253  //Only updates when the
254
255  //value changes.
256
257  if (val_old != r) {
258
259    Robot.noFill();
260
261    //erase the old circle
262
263    Robot.stroke(255, 255, 255);
264
265    Robot.circle(26, 116, r + 1);
266
267    //draw the new circle
268
269    Robot.stroke(255, 0, 255);
270
271    Robot.circle(26, 116, r);
272
273    Robot.stroke(0, 0, 0);
274
275    val_old = r;
276
277  }
278}
