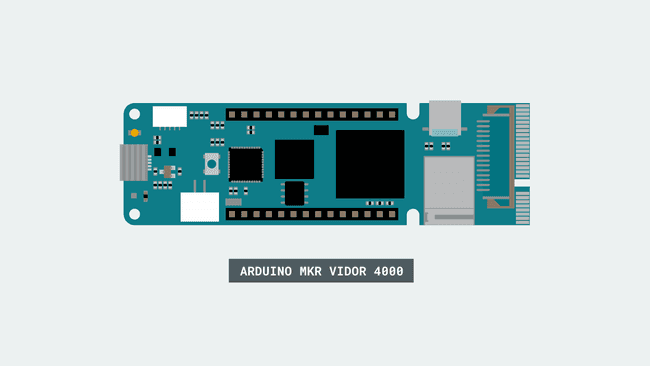

Draw Arduino Logo with MKR Vidor 4000

Copy
1#include "VidorGraphics.h"
2#include "Vidor_GFX.h"
3
4Vidor_GFX  vdgfx;
5
6void setup() {
7
8  Serial.begin(9600);
9
10  // wait for the serial monitor to open,
11
12  // if you are powering the board from a USB charger remove the next line
13
14  while (!Serial);
15
16  // Initialize the FPGA
17
18  if (!FPGA.begin()) {
19
20    Serial.println("Initialization failed!");
21
22    while (1) {}
23
24  }
25
26  delay(4000);
27}
28
29void loop()
30{
31
32  /**
33
34  *  Draw an Arduino logo
35
36  */
37
38  // Fill the screen with a white background
39
40  vdgfx.fillRect(0,0,640,480,vdgfx.White());
41
42  /**
43
44  *  The library allows drawing some basic elements to the view, like circles, rectangles, lines
45
46  */
47
48  vdgfx.fillCircle(225,225,100 ,vdgfx.lightBlue());
49
50  vdgfx.fillCircle(415,225,100 ,vdgfx.lightBlue());
51
52  vdgfx.fillCircle(225,225,90 ,vdgfx.White());
53
54  vdgfx.fillCircle(415,225,90 ,vdgfx.White());
55
56  vdgfx.fillRect(175,220,100,10 ,vdgfx.lightBlue());
57
58  vdgfx.fillRect(365,220,100,10 ,vdgfx.lightBlue());
59
60  vdgfx.fillRect(410,175,10,100 ,vdgfx.lightBlue());
61
62  /**
63
64  *  To draw a text we can use the classic functions like write() and print()
65
66  *  Text size, color and position can be changed using the .text subclass
67
68  */
69
70  vdgfx.text.setCursor(150,375);
71
72  vdgfx.text.setAlpha(255);
73
74  vdgfx.text.setSize(3);
75
76  vdgfx.text.setColor(vdgfx.lightBlue());
77
78  vdgfx.println("ARDUINO");
79
80  vdgfx.text.setCursor(480,145);
81
82  vdgfx.text.setSize(1);
83
84  vdgfx.println("TM");
85
86  while (1) {
87
88  }
89}
